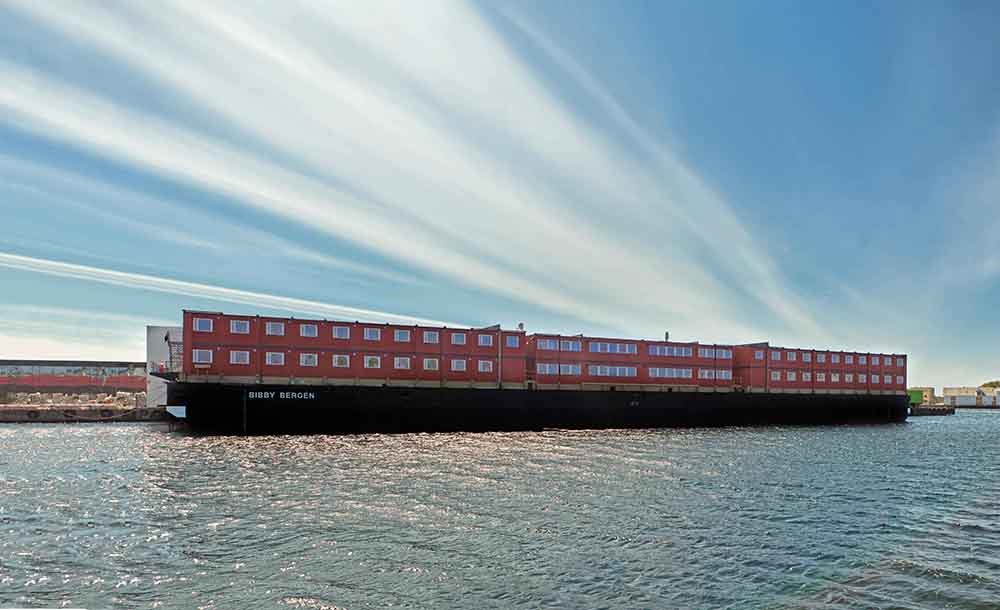

Bergen
| Length overall |
100.06m |
| Breadth including rubbing strakes |
25.76m |
| Breadth including mooring collars |
n/a |
| Breadth including gangway platforms |
n/a |
| Depth |
7.50m |
| Bottom of keel to highest point |
16.41m |
| Working draft |
3.00m to 4.00m |
| Gross Tonnage |
7828 |
| Net Tonnage |
2348 |
ACCOMMODATION
| · |
A total of 182 furnished bedrooms are available, each measuring 8.7m2. The majority of the bedrooms accommodate 2 people giving a total of 354 beds. |
| · |
All rooms have en-suite facilities comprising toilet, washbasin, shower and extract ventilation. |
| · |
Heating is provided by 800w electric radiators. |
| · |
En-suite heating is provided by a 500w reflector radiator. |
| · |
Double electrical outlet sockets with TV aerial point. |
PUBLIC AREAS
| · |
Reception area with separate reception office. |
| · |
Restaurant/dining areas with seating for 130 people per sitting. |
| · |
Separate lounge/recreation areas located on the 1st deck. |
| · |
Public toilets adjacent to dining rooms and lounge areas. |
| · |
Changing rooms located on the deck level adjacent to the main entrance. |
| · |
Lounges with a total area 228m2 located on the first deck. |
CATERING & HOUSEKEEPING
| · |
A fully-equipped kitchen with associated dry and refrigerated storage facilities is located on the barge deck. |
| · |
Laundry rooms with washing machines, dryers, sinks etc. |
| |
Ample storage rooms and lockers throughout the Coastel. |
HEATING & VENTILATION
| · |
All rooms, offices and public areas are heated by 800w electric radiators. |
| · |
Each room has natural ventilation. |
| · |
Each bathroom has natural ventilation and a mechanical exhaust system. |
FIRE DETECTION & ALARM SYSTEM
| · |
Smoke detectors are installed in all bedrooms, public rooms and stairwells. Heat detectors are installed in the kitchens and are linked to a central control and alarm monitoring system located at the reception. |
| · |
Manual fire alarm push buttons are installed in stairwells and adjacent to all external doors. |
| · |
Fire fighting equipment is installed around the Coastel as required by the Norwegian Building Regulations. |
| · |
Fire and smoke doors are installed throughout the accommodation as required by the Norwegian Building Regulations. |
| · |
A public address system, which serves all areas, is operated from the reception. |
CLASSIFICATION & CERTIFICATION
Classification Society Lloyd's Register
Class + 100 A 1 PONTOON
Building Code Norwegian Building Code
POWER SUPPLY
Shore supply only. 400v, 50Hz, 3 phase providing 220v for domestic use.
SYSTEMS PREPARED FOR SHORE CONNECTION
| Shore power |
Yes |
| Fresh water |
Yes (including fire main) |
| Sewage |
Yes |
| Diesel |
No |
| Telephone |
Yes |
| Seawater for fire main |
No |
| Fire alarm panel |
Yes |
| Bibby Bergen |
| Facilities |
Size each m2 |
Barge Deck |
1st Deck |
Total Rooms |
Bedrooms
All en-suite |
8.7 |
84 |
98 |
182 |
| Restaurant 130 seats |
159 |
1 |
|
1 |
| Galley |
46 |
1 |
|
1 |
| Cold store |
15.5 |
1 |
|
1 |
| Dry store |
21.8 |
1 |
|
1 |
| Storerooms/locker rooms |
9.1 |
2 |
5 |
7 |
| Reception office |
9.1 |
1 |
|
1 |
| Reception area |
40 |
1 |
|
1 |
| Changing rooms |
18.5 |
6 |
|
6 |
| Lounge/recreation areas |
2 X 44.6 &
2 X 69.2 |
|
4 |
4 |
| Public toilets |
n/a |
6 |
6 |
12 |
| Main laundry rooms |
8.8 |
2 |
|
2 |
| Owner's Storerooms |
n/a |
|
1 |
1 |
| Owner's office |
21.8 |
|
1 |
1 |
| Owner's suite |
8.7 |
|
1 |
1 |
All specifications and configurations are approximate and may change to comply with charterers requirements
